Qotom Powerful Mini PC 6 LAN Skylake Kaby Lake Processor DDR4 SSD Build Advanced Router Firewall mini pc

FOB Reference Price:Get Latest Price
$155.00 - $170.00 / Units | 1 Unit/Units (Min. Order)
Memory Capacity:
4g 8GB ≥ 16GB None 16GB 32GB
Hard Drive Capacity:
≤ 40GB 120GB 250GB 500GB 1TB ≥ 1.5TB Other
Lead Time:
Quantity(Units) 1 - 500 >500
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 5 Units)
Graphic customization (Min. Order: 5 Units)

More

Add CPU (Min. Order: 1 Units)
Add RAM & SSD (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barebone System
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Optical Drive Type:
NO
Processor Main Frequency:
Based on CPU
Brand Name:
QOTOM
Model Number:
Q600G6
Place of Origin:
Guangdong, China
CPU:
Supports Intel 7th & 6th Gen Processor
CPU TDP:
35W/51W/65W
Chipset:
Intel B150
Graphics:
Intel HD Graphics (By CPU)
LAN Chipset:
6 x Intel LAN
Watch Dog:
Yes
Wi-Fi:
Support
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1 x Mini PC
1 x Screws
1 x Power Adapter with Cable
2 x Antennas (If with WiFi)
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 500 >500
Est. Time(days) 7 To be negotiated

Attention!!! There are always surprise prices for a willing heart~ Send me an inquiry! Now!!!

Product Description
 Onboard CPU  Supports Intel 7th & 6th Gen processor (Socket: LGA1151)
  CPU Option Q600G6: Computer case without CPU
 Q610G6: Intel Skylake Celeron G3900 Dual Core, 2M Cache, 2.8GHz, Intel HD 510
 Q615G6: Intel Kabylake Celeron G3930 Dual Core, 2M Cache, 2.9GHz, Intel HD 610
 Q620G6: Intel Skylake Pentium G4400 Dual Core, 3M Cache, 3.3GHz, Intel HD 510
 Q625G6: Intel Kabylake Pentium G4560 Dual Core, 3M Cache, 3.5GHz, Intel HD 610
 Q630G6: Intel Skylake Core i3-6100 Dual Core, 3M Cache, 3.7GHz, Intel HD 530
 Q635G6: Intel Kabylake Core i3-7100 Dual Core, 3M Cache, 3.9GHz, Intel HD 630
 Q650G6: Intel Skylake Core i5-6400 Quad Core, 6M Cache, 2.7GHz, up to 3.3GHz, Intel HD 530
 Q655G6: Intel Kabylake Core i5-7400 Quad Core, 6M Cache, 3.3GHz, up to 3.5GHz, Intel HD 630
 OS 6th Gen CPU: Support Windows 7, Windows 8, Windows 10, Linux, Pfsense, etc.
 7th Gen CPU: Support Windows 10, Linux, Pfsense, etc.
 Memory  2 x DDR4 SO-DIMM Socket (Up to 32G, 2133MHz)
 Storage 1 x 2.5-inch HDD/SSD
 1 x M key M.2 NVMe for SSD (Type: 2260, 2280mm)
 LAN Chipset  6 x Intel I211-AT Gigabit LAN
 Processor Graphics   Chipset: By CPU
 CPU TDP: 35W/51W/65W
 Audio: No
 Security   AES-NI: Yes
 Watch Dog: Yes
 Kensington Lock: No
 Expansion        M.2: 1, M key M.2for SSD (Type: 2260, 2280mm)
         1, E key M.2 for WI-FI (Type: 2230mm)
 Mini-PCIe: 1, Full-length for 3G/4G
 GPIO: 1 x 2.0 Pitch Header
 Automatically Boot Jumper: 1
 SIM Card Slot: 1
 DC-in: Header (Optional)
 DC Jack: 5.5mm, 2.5mm
 VGA: 1 (Optional)
 RS-485: 1 x RS-485 (Optional)
 Serial Port: 1 , Supports 5V/12V (Optional)
 Power Adapter: 12V, 3A/5A
 Environmental   Operating Temp: 0°C~50°C
 Non-Operating Temp: -20°C~80°C
 Humidity: 10%~90%
 Mechanical   Material: Aluminum

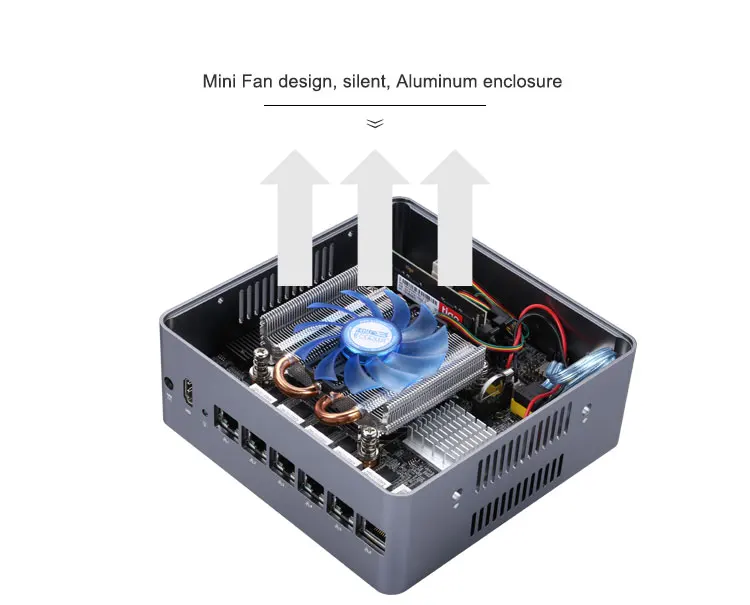

 Cooling Mode: Fan
