Qotom 6 LAN Mini Motherboard with Intel Celeron Processor 3855U 2M Cache,1.60 GHz AES-NI Fanless Industrial Nano itx motherboard

FOB Reference Price:Get Latest Price
  • 1 - 49 Units
    $128.00
  • 50 - 99 Units
    $124.00
  • >=100 Units
    $121.00
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Hard Drive Capacity:
120GB
Graphics Card Type:
Integrated Card
Display Type:
CRT
Widescreen:
Yes
Processor Main Frequency:
1.6Ghz
Brand Name:
QOTOM
Model Number:
Q3855UG6-P
Place of Origin:
Guangdong, China
CPU:
Intel Celeron Processor 3855U 1.6GHz
Memory:
support DDR3 DIMM Memory Slot
Hard Disk:
support SSD ( MSATA / SATA) - support HDD (2.5 inch SATA HDD )
Graphics:
Intel HD Graphics 510
WIFI:
optional
Operating System:
Win8/10,Linux etc.
Dimension:
148mm x 104mm
Memory Capacity:
≥ 4GB
Supply Ability
Supply Ability:
3000 Case/Cases per Month
Packaging & Delivery
Packaging Details
the standarded export carton
Port
shenzhen
Lead Time :
3 days after payment
Product Description
Mechanical standard
Nano Industrial Mini itx Motherboard
Size
148mm x 104mm
Processor
Intel Celeron Processor 3855U (2M Cache, 1.6GHz)
Power Consumption
10W TDP
Working condition
Operation Temperature -10º-50ºC
Operation Humidity 10%-90% Relative Humidity,
Non-Condensing
Memory
One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V
8GB Max

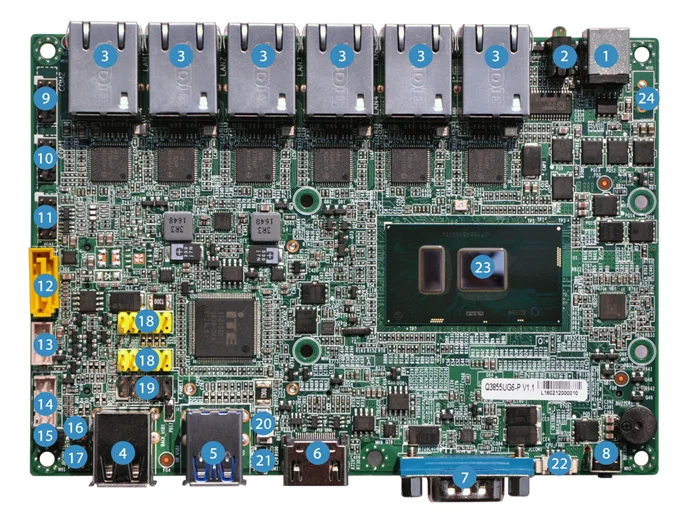

                                                                    Q3855UG6-P Interface Description
1
12V DC in Connector
2
HDD LED/Power LED
3
6 x LAN Connector
4
2 x USB 2.0 Ports
5
2 x USB 3.0 Ports
6
HD Video Connector
7
Serial Port
8
Power Button
9
Serial Port Expansion Header (COM2)
10
Serial Port Expansion Header (COM1)
11
VGA Extension Header
12
SATA Port
13
SATA Power Connector
14
GPIO Header
15
Automatically Boot Jumper
16
COM1 5V/12V Jumper
17
COM2 5V/12V Jumper
18
USB 2.0 Header
19
Front Panel Header
20
Battery Connector
21
CMOS Clean Header
22
CPU Fan Header
23
Processor (Support Skylake-U/Kabylake-U )
24
DC in Header (Optional)
25
Mini PCI Express Connector for WIFI, Bluetooth, 3G/4G module
26
Mini PCI Express Connector for MSATA SSD
27
SIM Card Socket
28
DDR3L SO-DIMM Socket
detail pictures
Related fanlProducts

Q310G4( 4 LAN, HD Video port ,       4USB,COM)

Dual core Intel Celeron 3215u processor

Q190G4N(4 LAN, 4USB, VGA)

Intel  Celeron baytrail j1900 ,quad core  processor

Q190N/Q180N(   5USB,LAN, VGA,COM, 4USB)

Intel Celeron baytrail j1900 processor

Q190P/Q180P(4COM,4USB,2LAN,HD Video port)

quad core  Celeron j1900 processor

Q310P(8USB,2HD video,6COM)

Intel celeron desktop computer

Celeron 3215U/3205U/3805U/4200U/I7-4500U Processor

Q190S/Q180S(2 LAN 2USB, HD + VGA)

Intel Celeron J1900/J1800 CPU
fanless mini computer


Visit Our Factory

QOTOM Technology LTD.

In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team.

Our Service

One year warranty

All the mini pc and accessories have been tested before delivery.

The goods will be sent to you about 3 days arrives at destination.

The preloadded unactivated  Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable.

We are not responsible for your import fees (duty and tax, VAT and others), but we can  our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.


FAQ

Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
