Qotom Barebone Ultra Low Power Firewall 4 Lan Fanless Mini Pc i7

  • 1 - 10 Sets
    $269.00
  • 11 - 50 Sets
    $266.00
  • 51 - 100 Sets
    $258.00
  • >=101 Sets
    $249.00
Memory Capacity:
4g 8GB
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 500 >500
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Samples:
Place Sample Order
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Qotom
Model Number:
Qotom-Q370G4
Screen Size:
No Monitor
Type:
Desktop
Display Type:
no monitor
Graphics Card Type:
Integrated Card
Optical Drive Type:
no
Widescreen:
Yes
Processor Brand:
Intel
Processor Main Frequency:
1.8GHz
Color:
Black
CPU:
Intel Core i7-4500U Processor
Size:
187*111*50mm(L*H*W) ( Reference )
Power Consumption:
15W
Main Ports:
cpu i7, 4 LAN, 1COM, HD display
Memory Capacity:
DDR3L 1.35v SO-DIMM ram
Hard Drive Capacity:
mSATA SSD, SATA HD
Material:
Aluminum Alloy
Warranty:
1 year
Ethernets:
4 LAN
Products Status:
Stock
Supply Ability
Supply Ability:
1000 Set/Sets per Week

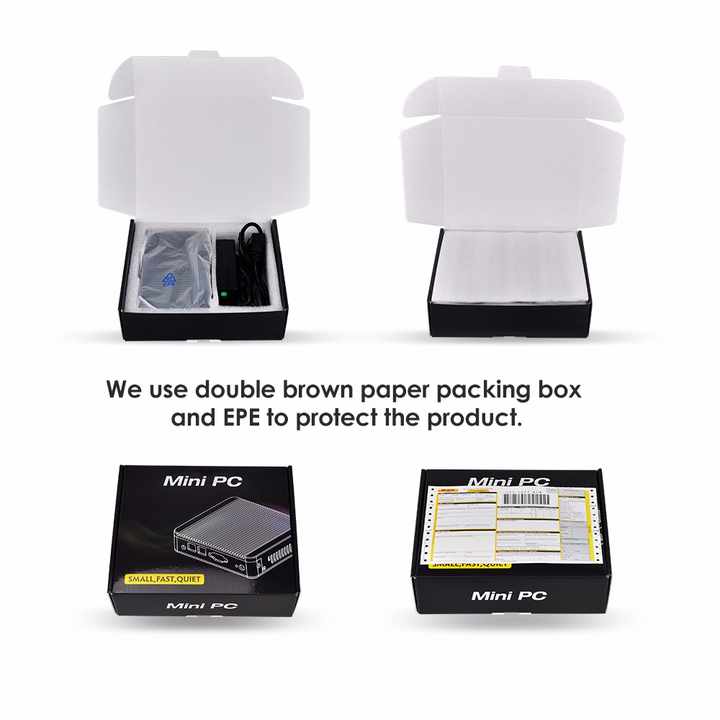

Packaging & Delivery

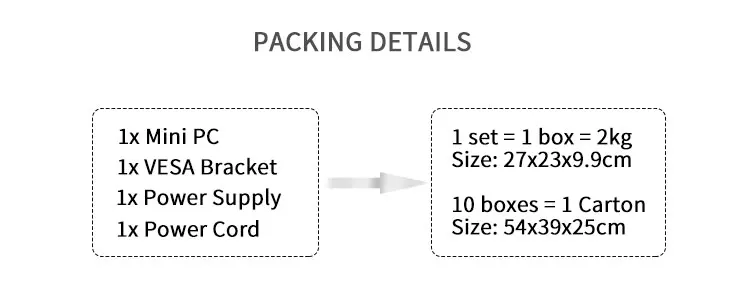

Packaging Details
1 set neutral box Size: 26*22*8cm
1 set neutral box G.W. : 2kg
10 sets in a Carton.
1 Carton Size: 54*39*25cm
1 Carton G.W: 19kg
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 500 >500
Est. Time(days) 3 To be negotiated
Product Description

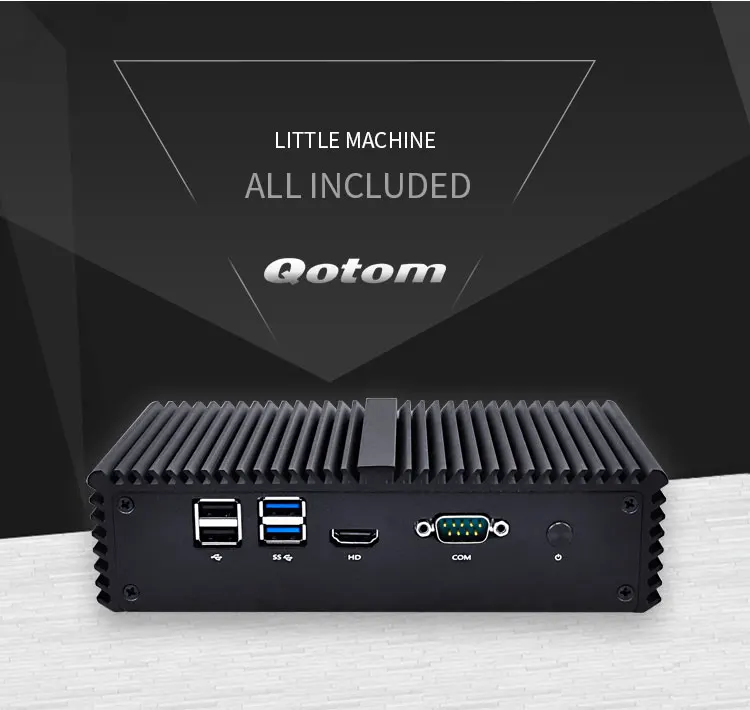

Barebone Router PC.


2018 Qotom cheap barebone computer ultra low power firewall ubuntu 4 ethernets x86 fanless mini pc i7 4500u processor. AC wifi and bluetooth for optional (such as Intel AC3160 etc)


Model
Qotom-Q370G4
Material
Aluminum
Dimension
S08: 187*111*50mm
Power Consumption
TDP 15W
Cooling Mode
Fanless Design
Onboard CPU
Intel 4th Gen Core i7 4500u 1.8GHz Dual Core
Chipset
Intel Soc Chipset
Onboard VGA
Intel HD4400
Onboard LAN
Intel I211-AT Gigabit LAN
Audio Solution
Realtek ALC662 HD Audio
Operating System
Support Windows 7 /Windows 8 / Windows 10 /Linux / pfsense etc.
Memory
DDR3L 1600MHz SO-DIMM ram 1.35V (max 8G)
Storage
Support 1x2.5 inch SATA HDD and 1x mSATA SSD simultaneously
Kensington Lock
Support


4* Intel I211-AT- 10/100/1000 Controller, high quality control.


Environmental
Power Requirement
Operating Temp
0°C~50°C
Power Adapter
12V5A
Non-Operating Temp
-20°C~80°C
DC Jack
5.5mm, 2.5mm
Humidity
-20°C~80°C
Input AC Range
110V~240V

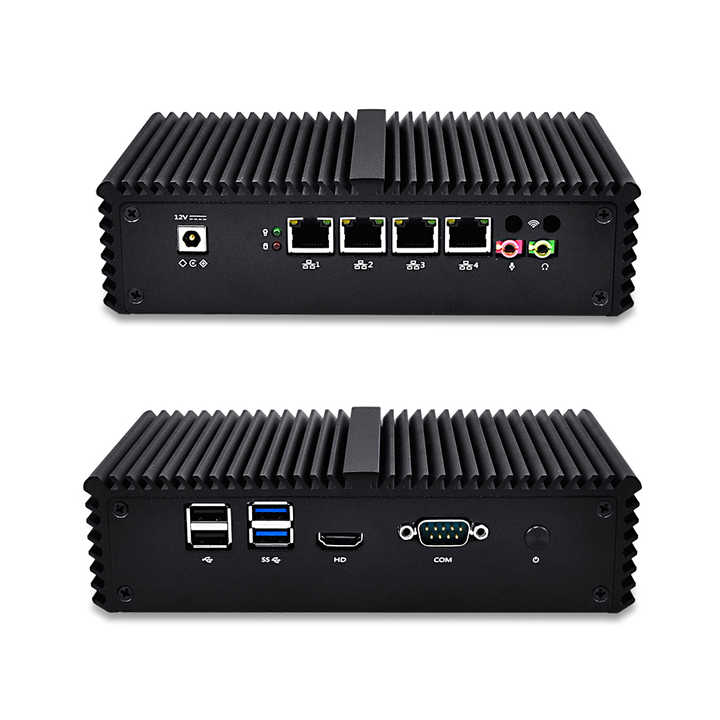

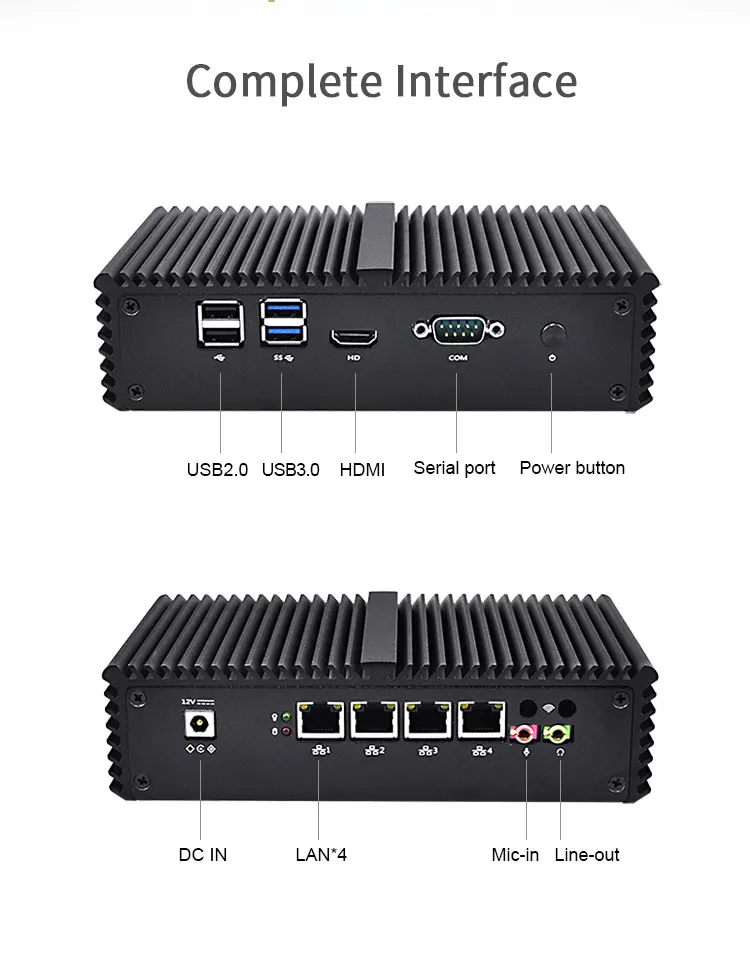

Front I/O
Rear I/O
1 x Power Button
1 x Power LED
1 x 12V DC Jack
4 x RJ45 Port
2 x USB 3.0
1 x RS232
1 x Power LED
1 (Mic-in, Line-out)
2 x USB 2.0
 1 x HD display port
1 x HDD LED
Detailed Images

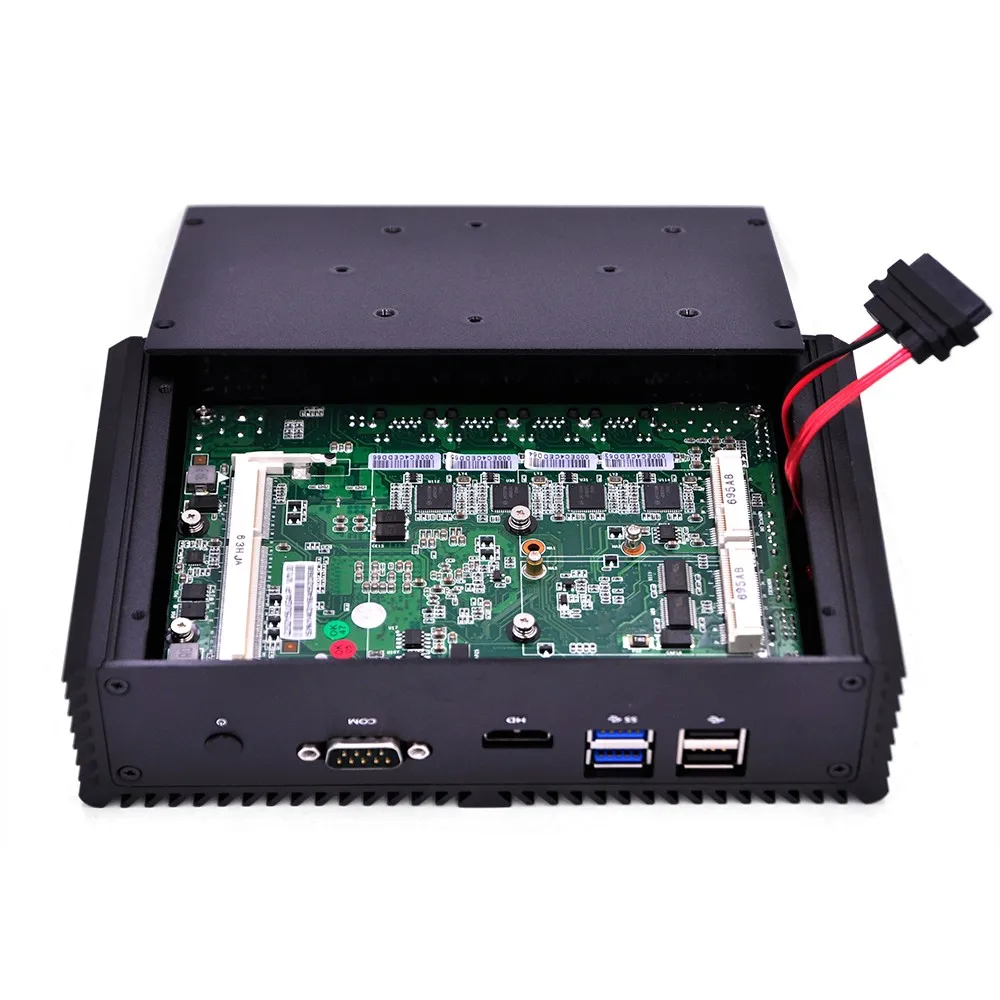

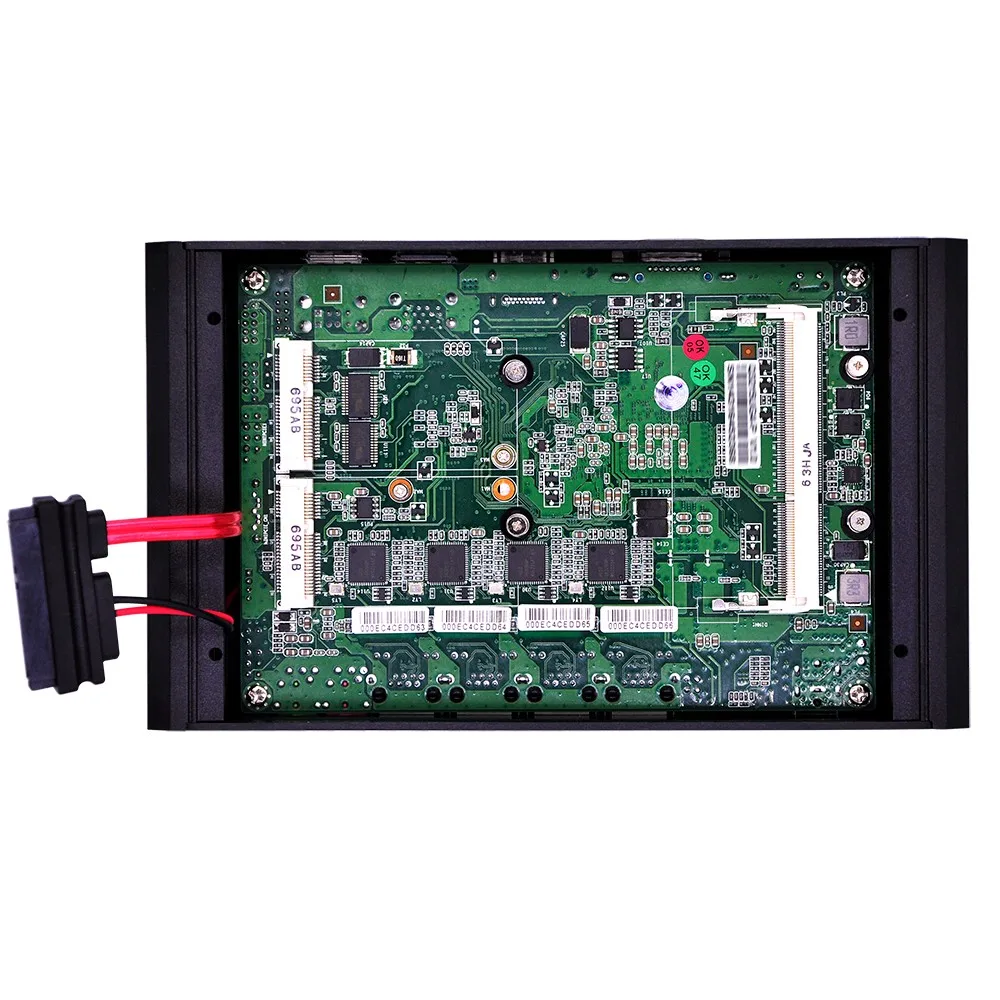

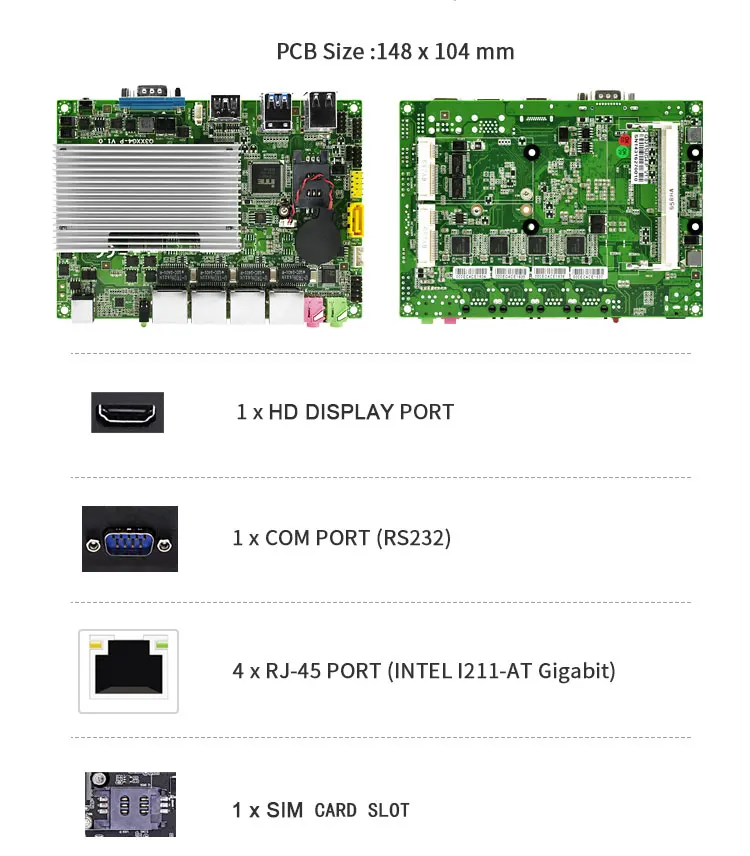

Compact PCB board



Press "delete" key while pc started, you can enter into BIOS and set up options by yourself.


Press "F11" boot from USB etc.



Support msata /sata ssd or 2.5 inch hdd, also support a msata ssd and a sata 2.5 inch hdd at same time.

Support DDR3L 1.35V SO-DIMM memory, maximun support 8G.

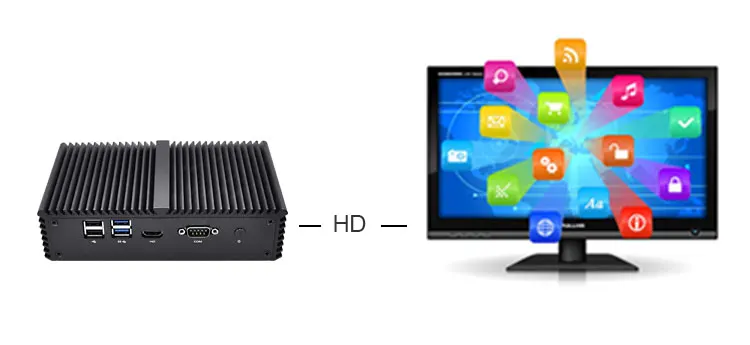

Energy-saving and Environmental protection, used for many situations,

such as TV playing, download machine on web, business office computer,

connect projector, hotel pc, multimedia teaching, POS system, Digital signage,

Multi media player etc, a wonderful mini pc solution.

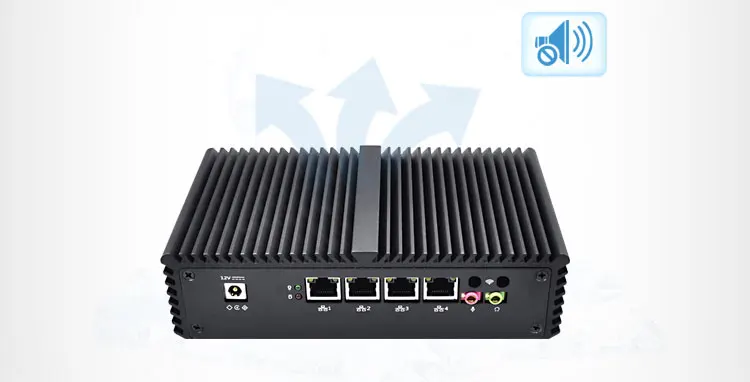

Nice design of interface, Sand blasting exquisite workmanship.




Standard VESA bracket

Perfect saving desktop space for you!

Packing & Delivery








1) DHL/FEDEX/TNT (Fastest way)

E.T.A.: 3-7 business days in normally, import duties will be paying by your side (if there's any).


Therefore, an undervalue price will be indicated in commercial invoice, aim to avoid or reduce few import duties. Pls contact us if there are special requests, thanks.


2) DHL(special)/UPS/DPD (Slower way)

E.T.A.: 7~15 days in normally, import duties will be prepaid by our company, these channels are aimed at clients from UK and EU (Belgium, Luxembourg, Netherlands, Germany, Denmark, France, Italy, Czech, Poland, Spain, Austria, Finland, Ireland, Portugal, Sweden, Bulgaria, Estonia, Greece, Croatia, Hungary, Lithuania, Latvia, Romania, Slovenia, Slovakia), except the remote area address.


 3) EMS/ ePacket (Slowest way)

 Mainly aim at Russia, Brazil or ALL remote areas address.

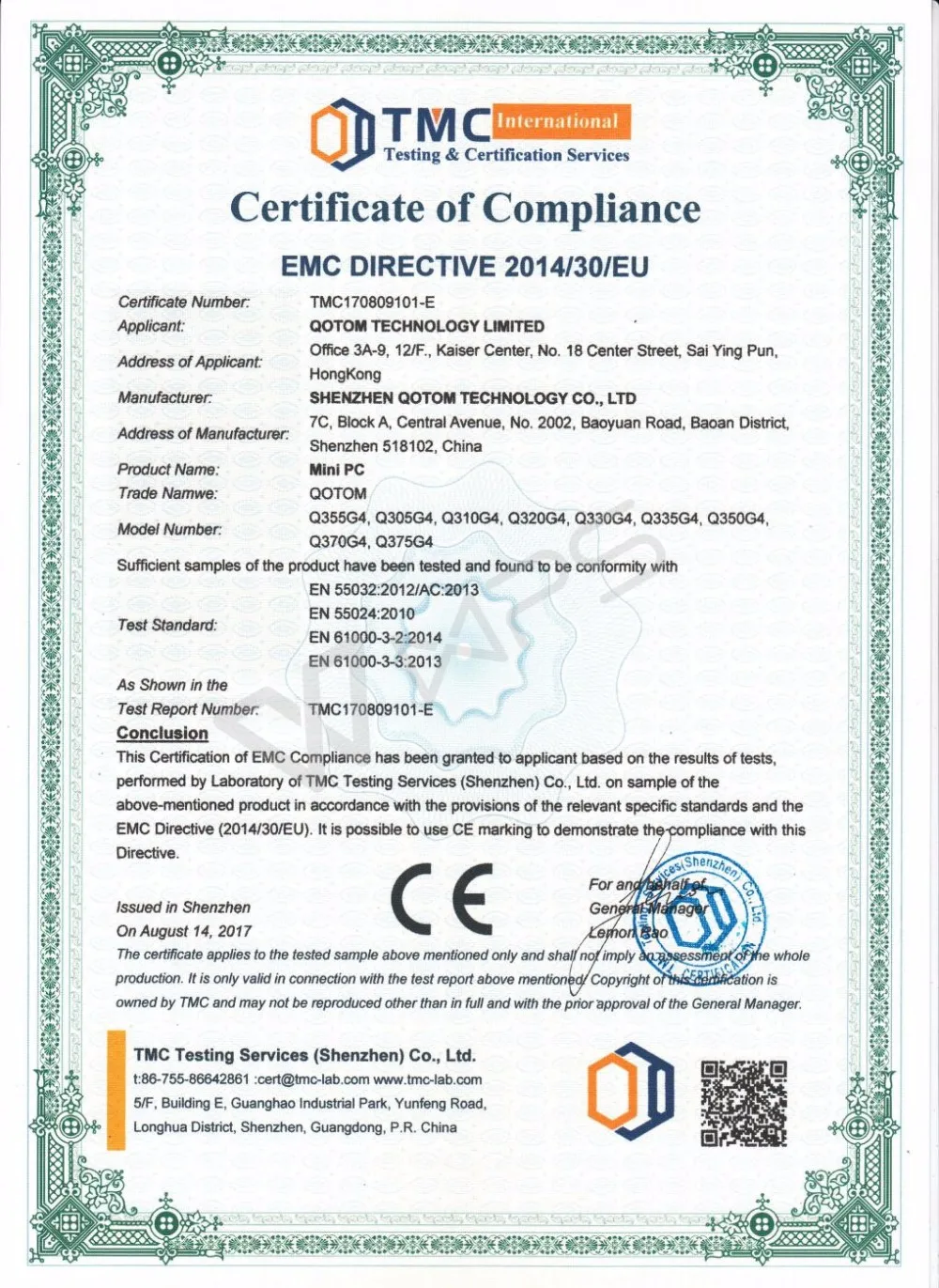

Certifications
Our Company

Company location

7C, Block A, Central Avenue, Baoyuan Road, Bao'an District, Shenzhen, China

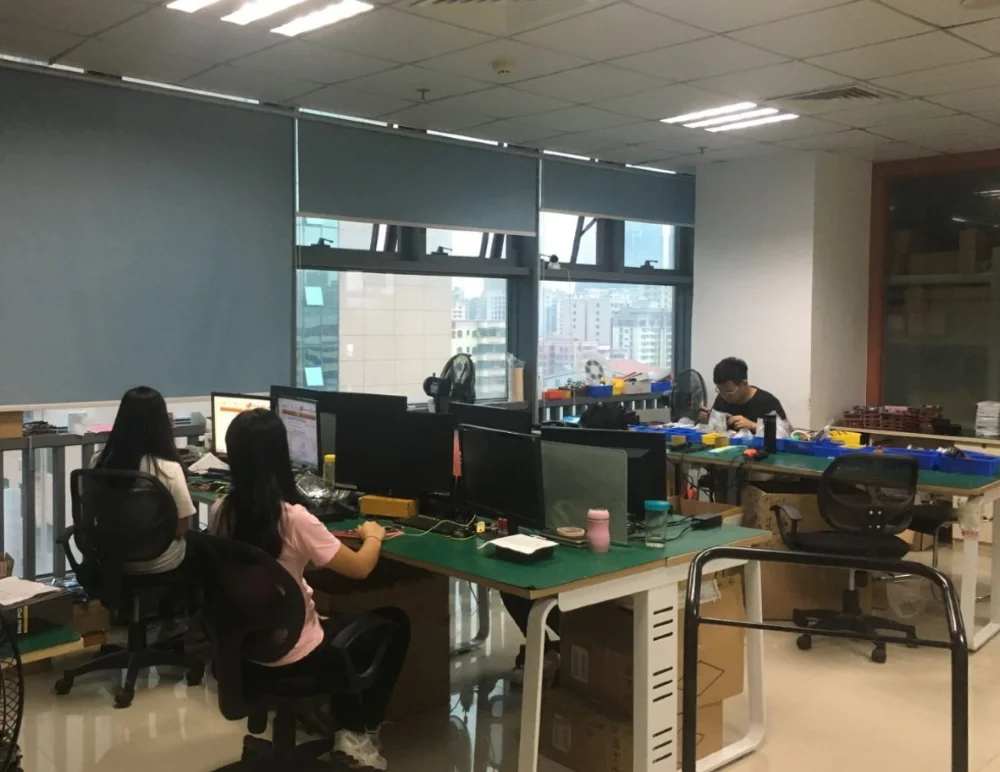

Office picure (one of a corner)

Comfortable green working environment

QC tect (one of a corner)

Every mini pc before delivery will be pass the burn-in test and function test.

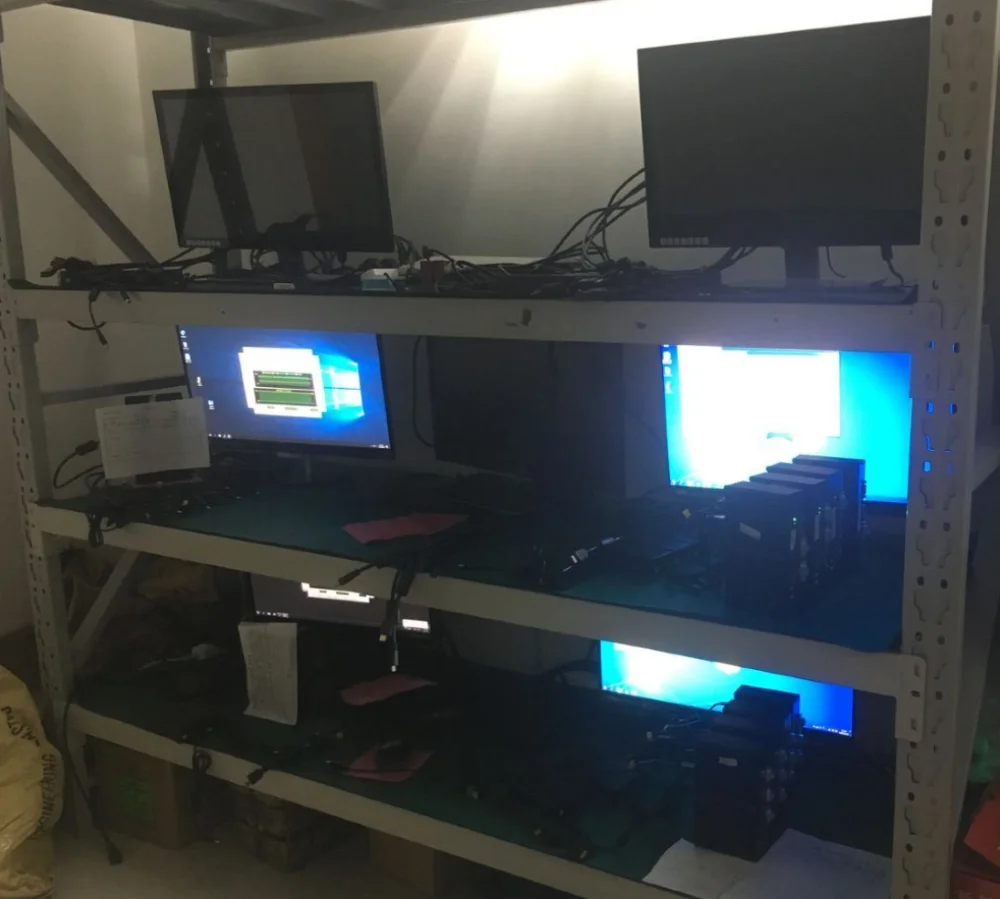

Burn-in test (one of a corner)

Every mini pc before delivery will be pass the burn-in test and function test.

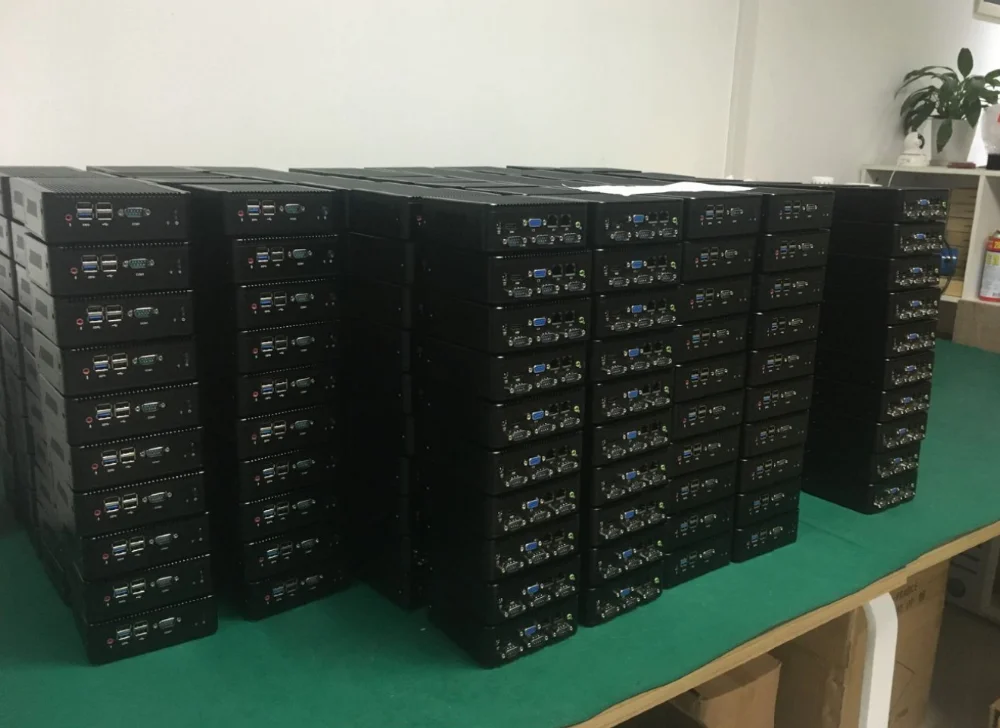

Ready made (one of a corner)

See it! Do you like them?

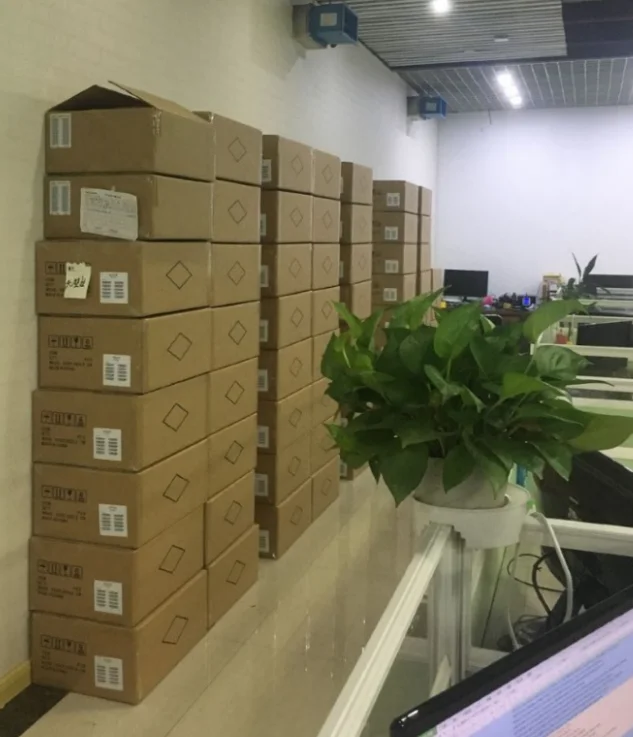

Before delivery (one of a corner)

This is for one of our clients, welome to consult!
