2019 Core i5 Mini Pc Q220N with Core i5-3317U, ultra low power 17W,DC 12V, HD Graphics 4000 i5 Desktop Computer

  • 1 - 99 Pieces
    $175.00
  • >=100 Pieces
    $165.00
Memory Capacity:
4g 8GB
Hard Drive Capacity:
8G Msata SSD
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Qotom
Model Number:
Qotom-Q220N
Screen Size:
No Monitor
Type:
Desktop, MIni PC
Display Type:
no monitor
Graphics Card Type:
Integrated Card
Optical Drive Type:
no
Widescreen:
Yes
Processor Brand:
Intel
Processor Main Frequency:
2.6GHz
Color:
Black
CPU:
Intel Core i5-3317U Processor (3M Cache, up to 2.60 GHz)
Size:
135*128*38mm(L*H*W)
Power Consumption:
17W
Ports:
1*COM +1*RJ-45 LAN+1*HD Video+1*VGA +5*USB2.0
Warranty:
1 Year
Memory Capacity:
2G DDR3 RAM
Products Status:
Stock
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Netural box, 27*23*9CM, 10 pcs/Carton
Port
Shenzhen
Product Description
Size
135×128×38mm
Weight
680g
Color
Black

Onboard CPU
Intel® Core™ i5-3317U Processor
(3M Cache, up to 2.60 GHz)
Memory
  1333MHz/1600MHz DDR3 SO-DIMM Memory
- 1 x Memory Slot,Supports up to 8GB Memory
Storage
- mSATA port
- Large capacity mSATA SSD is optional
Onboard VGA
Intel® HD Graphics 4000
LAN
RJ-45 port
- Realtek RTL8111E 10/100/1000 Controller
Wireless
Optional ( 802.11 b/g or 802.11 b/g/n)
Bluetooth
Optional
Audio
Realtek ALC662 HD Audio
Power Consumption
17W
Chipset
Intel NM70

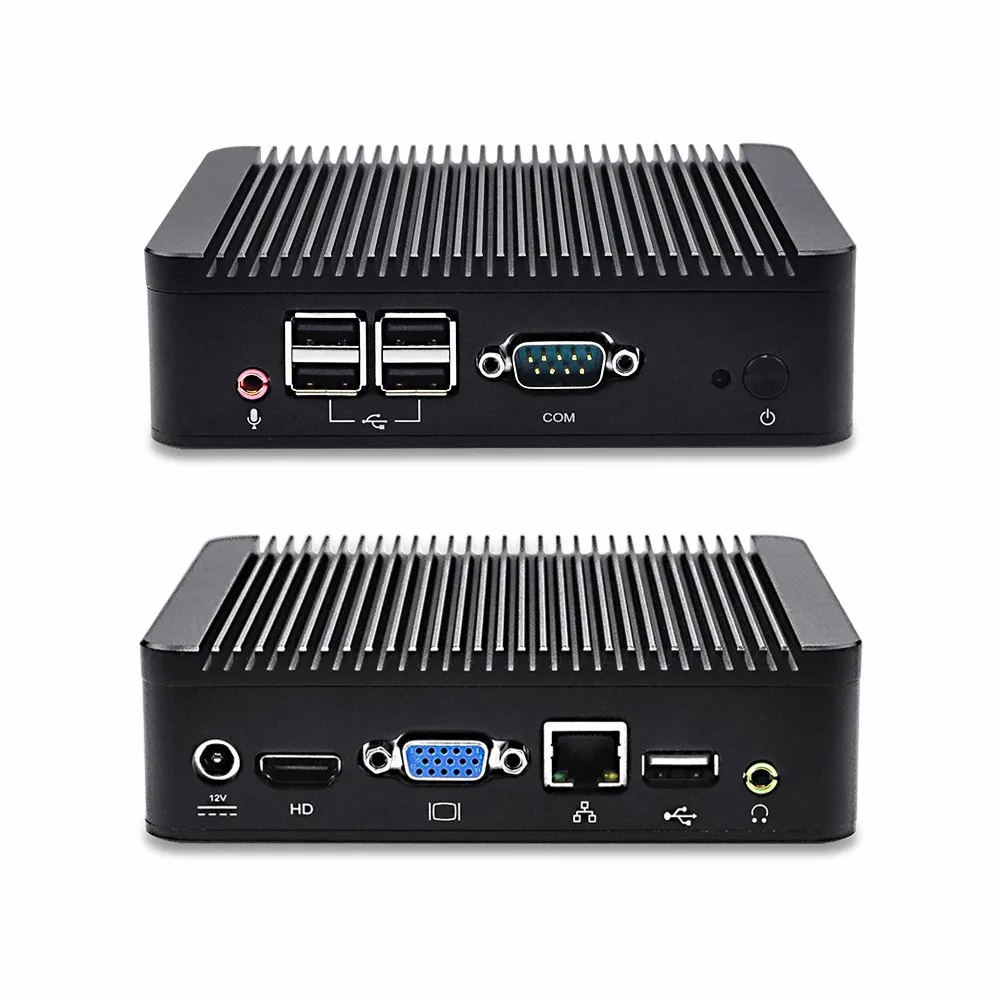

Front-Panel Connectors
• 1 × Power switch button ( Power LED )
• 1 × HDD LED
• 4 × USB2.0 ports
• 1 × Microphone port
• 1 × Serial port
Back-Panel Connectors
• 1 x DC 12V DC input
• 1 x HD Video port
• 1 x VGA port
• 1 x RJ-45 port
• 1 x USB 2.0 port
• 1 x Speaker port
Operating System
Without the operating system by default
- Support Windows XP/Windows 7 / Windows 8 /Linux etc.
Packing list
Q220N,Power adapter,VESA Mount Bracket ( 75mm x75mm )


Configuration for Selection:

Memory
2G, 4G , 8G DDR3 RAM
Hard Disk
8G/16G/24G/30G/32G/64G/128G/256G/512G Msata SSD

WIFI
Optional

Quotation

What size Memory and Hard Disk do you need?

Please choose Memory, Hard disk and contact Cherry Ni to get the latest price.

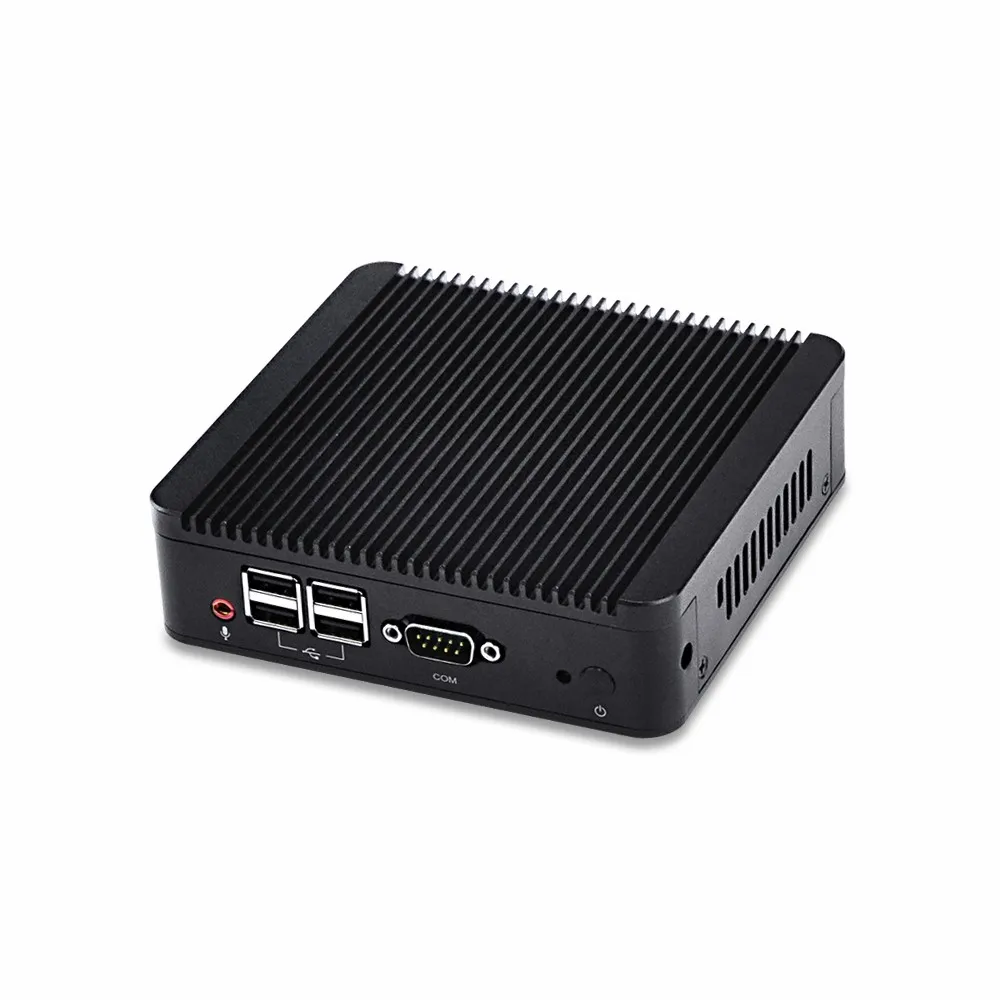

Qotom-Q220N MINI PC
Palm Size: 135×128×38mm(L*H*W)

Material: aluminium alloy ,Metal wire drawing process.
Weight: 1.5kg (WITH PACKAGE)


For Q220N, you will get the mini pc with:
1*COM +1*RJ-45 LAN+1*HD Video +1*VGA+5*USB2.0 + 1*DC 12V DC INPUT


1)Great reliability

With the adoption of the Haswell/Broadwell ultra-low power consumption processor and switching mode power supply, Q1007U  motherboard can provide stable, sufficient and efficient power. The stability of the motherboard is further guaranteed with the switching mode of power supply applied in memory, too. All of the external devices of the motherboard is composed of some anti-static and jam-proof components which ensured the operation of a stable and efficient system.

2)High Performance

It considerably increases performance of the platform by employing the Haswell/Broadwell chipset of Intel and SATA3.0

3)Full Support of BIOS

Support Diskless booting and Wake on LAN

4)Working Condition

Working Temperature:-10℃~50℃

Working Humidity:5%~95%(Non-gel)

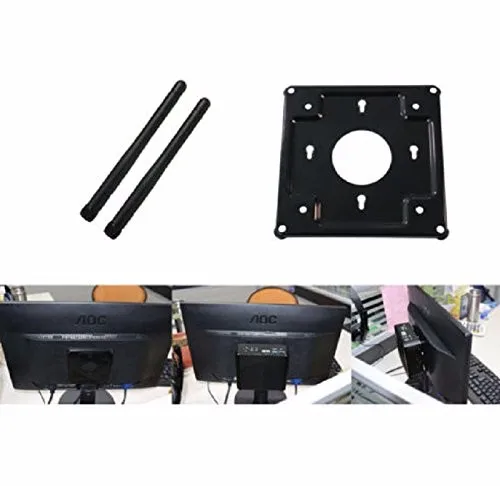

VESA bracket

It comes with a VESA mounting kit so that you can put it on the backside of a monitor to save space.

WIFI

If you order WIFI, the package box will include 2 pcs antennas.

Related Products
Application Field

Wide application: Bought this little guy as a functional server connect with tons of computers at the same time.
You may also find it at house,bedroom, theatre ,and school and so on.
The pocket size may help you save space compared to others such as the tower one.
As it takes low power consumption,work in deep silence, you may find it very eco-friendly.

Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Qotom has won numerous customers' trust and support.

Contact Us
Packing & Delivery


What's in the Package box?

1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 5A Power adapter and power plug.
There are 4 kinds of plug: European standard / British standard / Australian standard / American standard)


Delivery

1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.

PAYMENT

1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.

WARRANTY

1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.

FAQ

Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.


Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.


Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs


Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.


Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !


Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.


Q6: What mode of transport you can choose?
A: DHL,Fedex,UPS, air & sea transportation. Or your freight forwarders.


Q7: How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.


Q8: Will it be very hot since the mini computer CPU is fan-less?
A: Qotom fan-less mini pc are using Aluminum alloy case to help CPU heat releasing, even though it is fan-less, it won't be very hot. Normally the temperature range of mini pc is -5-40 degree.


Q9: Possible using 220v AC power?
A: Power supply is an international supply - 120/240 Vac at 50/60 Hz.

Q10: Are you a factory or trading company?
A10: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
