Qotom nano itx fanless board , 2 ethernet LAN Celeron 3215U apply to x86 desktop computer

FOB Reference Price:Get Latest Price
$50.00 - $120.00 / Unit | 1 Unit/Units (Min. Order)
Memory Capacity:
4g 8GB 16GB 32GB
Customization:
Customized logo (Min. Order: 50 Units)
Customized packaging (Min. Order: 50 Units)

More

Graphic customization (Min. Order: 50 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
QOTOM
Model Number:
3215UG2-S
Screen Size:
No Monitor
Type:
motherboard
Display Type:
CRT
Graphics Card Type:
Integrated Card
Widescreen:
Yes
Processor Brand:
Intel
Processor Main Frequency:
1.7Ghz
CPU:
Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
Memory:
support DDR3 DIMM Memory Slot
Hard Disk:
support SSD ( MSATA / SATA) - support HDD (2.5 inch SATA HDD )
Color:
Black
WIFI:
optional
Operating System:
support Win XP,Win7,Win8,Win10,Linux
Dimension:
148mm x 104mm
Products Status:
Stock
Supply Ability
Supply Ability:
3000 Case/Cases per Month
Packaging & Delivery
Packaging Details
the standarded export carton
Port
shenzhen
Product Description
TYPE
Description
Mechanical standard
NANO Industrial Motherboard
Dimension
120mm x 130mm
Processor
Intel Celeron Processor 3215U (2M Cache, 1.70 GHz, Broadwell)
power consumption
With up to 15 W TDP
BIOS
AMI BIOS  64MBit BIOS
Memory
One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V
Support 8GB Max
Graphics
Intel HD Graphics Display: LVDS / 2 HD video ,Three Display
LAN
2 x RTL8111E 1000M
Audio
Realtek ALC662 HD Audio Decoding controller
6 Channel Audio output
Line out + MIC IN Port
COM
4 x COM ports
USB
2 x On-board USB 2.0
4 x On-board USB 3.0
2 x Pin interface USB 2.0

Storage
1 x SATA 3.0 (6Gb/s) 1 x Mini PCIE port
Expansion Port
1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD )
1 x PCI E xpress Full-Mini Card connector ( for 3G/4G moudle )
1 x PCI E xpress Half-Mini Card connector ( for WIFI and Bluetooth )
1 x SIM port (optional)
1 x SATA power connector
1 x SATA 3.0 connector (6Gb/s)
1 x DDR3 SO-DIMM socket
1 x Front panel header
4 x Serial port headers
1 x LVDS header
1 x GPIO header
1 x Automatically boot jumper
2 x USB 2.0 header
1 x Audio header
Front Panel
1 x Push button for Power ON/OFF
1 x Power LED
2 x USB 3.0 ports
2 x USB 2.0 ports
Black Panel
1 x DC in connector
2 x HD video Connectors
2 x RJ45 1000M ports
2 x USB 3.0 Ports
1 x Mic in port
1 x Speaker out port
Power Supply
DC 12V
Working condition
Operation Temperature -10º-50ºC
Operation Humidity 10%-90% Relative Humidity,
Non-Condensing
Accessories
Cable for SATA HDD

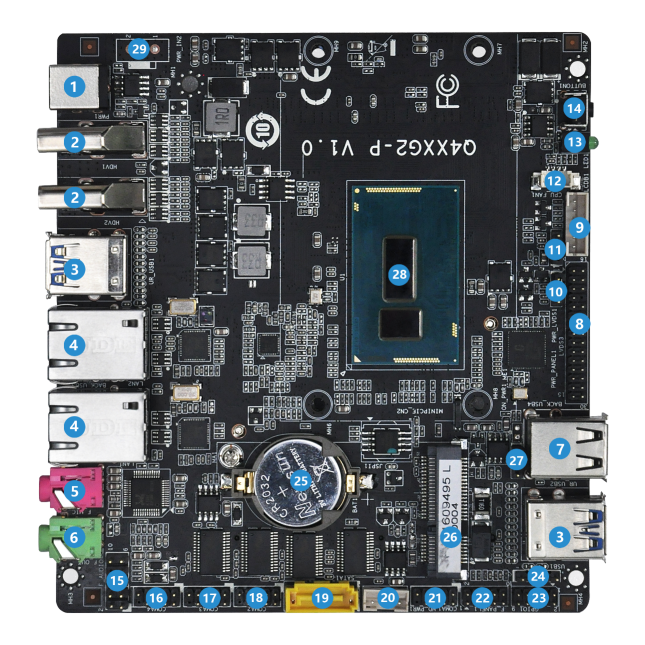

detail pictures
mainboard
1
12V DC in connector
2
HD video connector
3
4 * USB 3.0 ports
4
Lan connector
5
MIC: Connect to outside microphone
6
(Line out): Connect to outside audio device
7
2 * USB 2.0 ports
8
LVDS
9
LVDS
10
LVDS
11
LVDS
12
CPU fan header
13
Power led
14
Power button
15
Front panel audio header
16
Serial port expansion header (COM4)
17
Serial port expansion header (COM3)
18
Serial port expansion header (COM2)
19
SATA port
20
SATA power connector
21
Serial port expansion header (COM1)
22
Front panel header
23
GPIO header
24
Front panel USB 2.0 header
25
Battery connector
26
Mini PCI Express connector for 3G module
27
Automatically boot jumper
28
Processor (Support Haswell/Broadwell )
29
DC in header (optional)

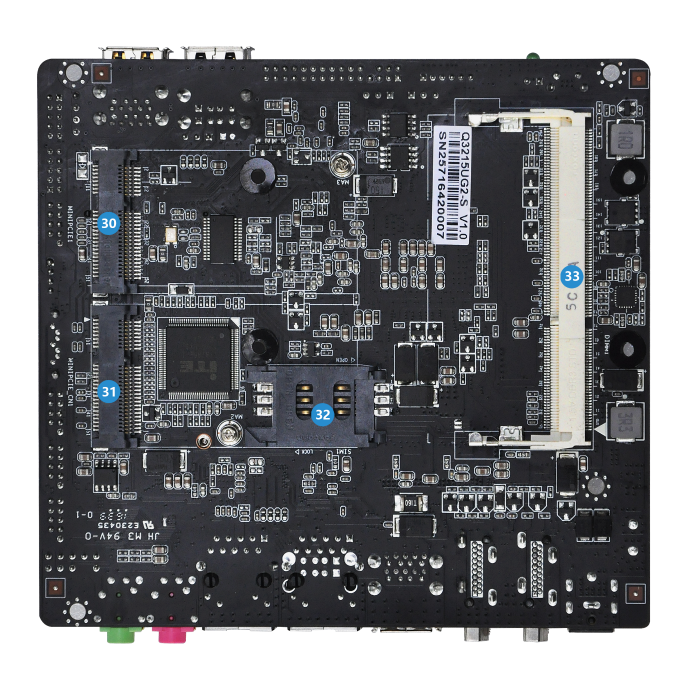

30
Mini PCI Express connector for MSATA SSD
31
Mini PCI Express connector for WIFI,Bluetooth module
32
SIM card socket
33
DDR3L SO-DIMM socket
mainboard for "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery.

functional mini pc

Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others

Related fanlProducts

Q310G4

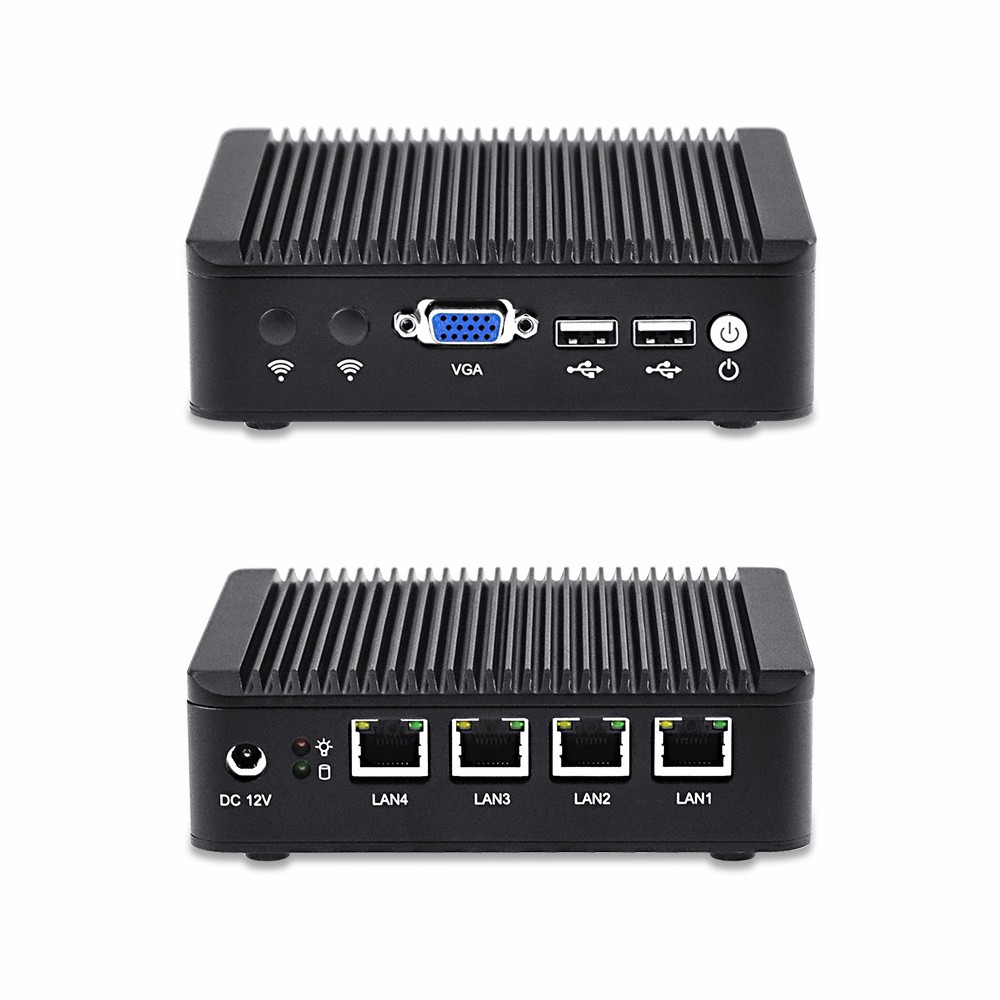

 Intel celeron mini pc with 3215u processor  4 ethernet desktop

Q190G4

Intel  Celeron baytrail j1900 mini pc

Q190N

Intel Celeron baytrail j1900 fanless
 portable  desktop  computer

190P

fanless mini pc with Celeron j1900 processor 4 serial ports

310P

Intel celeron desktop computer

Celeron 3215U USB2.0 and USB3.0

190S

Intel Celeron J1900 cpu 2 lan 4 USB
fanless mini computer


Visit Our Factory

QOTOM Technology LTD.

In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team.

Our Service

One year warranty

All the mini pc and accessories have been tested before delivery.

The goods will be sent to you about 3 days arrives at destination.

The preloadded unactivated  Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable.

Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements.

We are not responsible for your import fees (duty and tax, VAT and others), but we can  our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.


FAQ

Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
