OEM Qotom Mini pc barebone system,AES-NI fanless linux Ubuntu Mini PC i5 i3 gaming Desktop computer Q350P Q355P

FOB Reference Price:Get Latest Price
$50.00 - $220.00 / Cases | 1 Case/Cases (Min. Order)
Memory Capacity:
Barebone
Hard Drive Capacity:
barebone
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Desktop
Screen Size:
No Monitor
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Display Type:
CRT
Widescreen:
Yes
Processor Main Frequency:
1.7Ghz
Brand Name:
QOTOM
Model Number:
Q3XXP
Place of Origin:
China
Memory Capacity:
≥ 4GB
CPU:
Intel Celeron &Core /i5/i3
Size:
187*111*50mm(L*H*W)
Operating System:
Ubuntu/Linux/Win7/8/10.etc
Packageing List:
Power adapter ,VESA mount bracket
Memory:
Support MAX 8G DDR3L 1600 MHz,1.35V
LAN:
2 x Intel I211-AT- 10/100/1000 Controller
AES-NI:
i3/i5 support it
WatchDog:
YES
Supply Ability
Supply Ability:
4000 Case/Cases per Month
Packaging & Delivery
Packaging Details
the standarded export carton
Port
shenzhen
Detailed Images

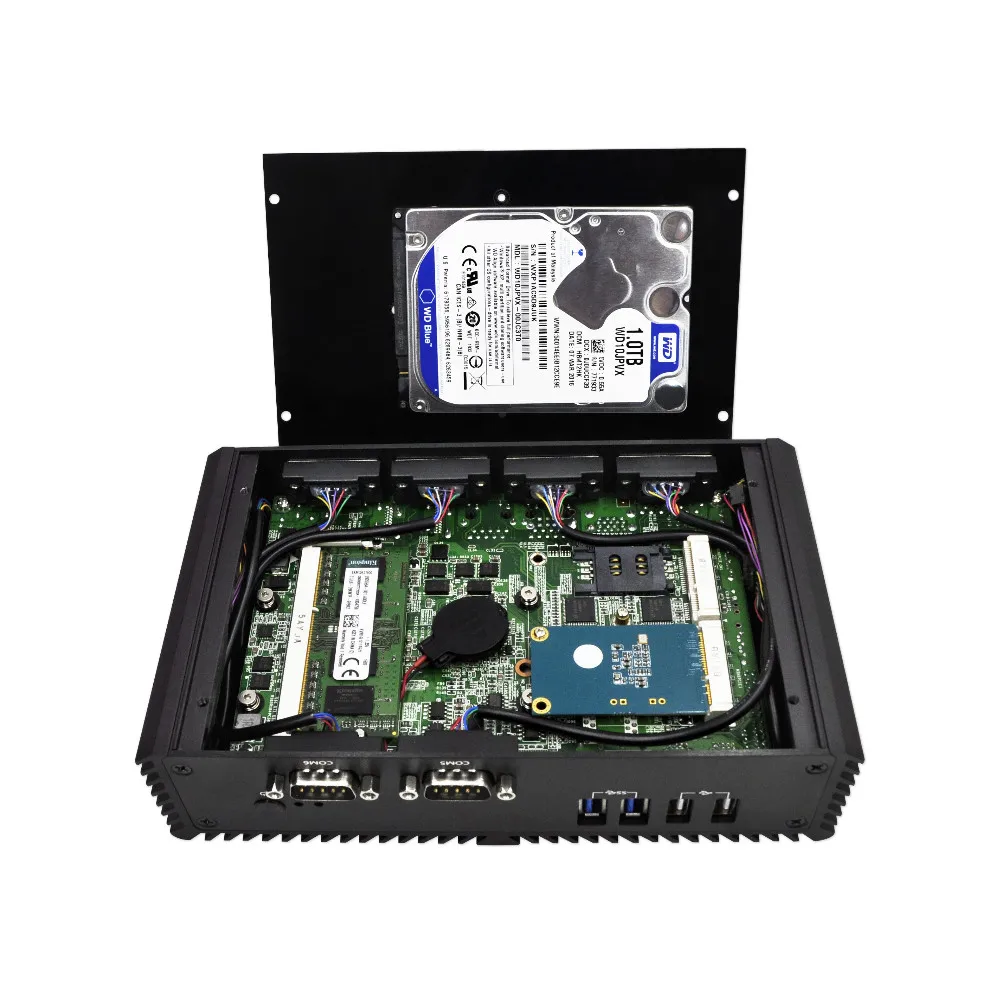

Packing & Motherboar
Recommend Products
ITEM: Q150P
1. USB3.0*4
2. USB2.0*2
3. LAN*2
4. HDMI*2
5. VGA*1
6. RS-232 COM*1
7. Mic-in*1, Line-out*1
ITEM: Q180S
1. USB3.0*1
2. USB2.0*3
3. LAN*2
4. HDMI*1
5. VGA*1
6. RS-232 COM*1
7. Mic-in*1, Line-out*1
ITEM: Q210S
1. USB2.0*4
2. LAN*2
3. HDMI*1
4. VGA*1
5. RS-232 COM*1
6. Mic-in*1, Line-out*1
ITEM: Q190X
1. USB3.0*1
2. USB2.0*7
3. LAN*2
4. HDMI*1
5. VGA*1
6. RS-232 COM*7
7. Mic-in*1, Line-out*1
8. 1 x Mini-PCIe for Wi-Fi
ITEM: Q300P
1. USB3.0*4
2. USB2.0*2
3. LAN*2
4. HDMI*2
5. RS-232 COM*6
6. Mic-in*1, Line-out*1
ITEM: Q400P
1. USB3.0*4
2. USB2.0*2
3. LAN*2
4. HDMI*2
5. RS-232 COM*4
6. Mic-in*1, Line-out*1
ITEM: Q600P
1. USB3.0*3
2. USB2.0*5
3. LAN*2
4. HDMI*2
5. RS-232 COM*4
6. Mic-in*1, Line-out*1
ITEM: Q600S
1. USB3.0*3
2. USB2.0*5
3. LAN*2
4. HDMI*2
5. Mic-in*1, Line-out*1
ITEM: Q600G6
1. USB3.0*2
2.
LAN*6
3. HDMI*1
4. FAN*1
ITEM: Q500G6
1. USB3.0*2
2. USB2.0*2
3. LAN*6
4. HDMI*1
5. RS-232 COM*1
ITEM: Q300G4
1. USB3.0*2
2. USB2.0*2
3. LAN*4
4. HDMI*1
5. RS-232 COM*1
6. Mic-in*1, Line-out*1

ITEM: Q3105G
1. USB2.0*2
2.
LAN*1
3. HDMI*1
4. RS-232 COM*1
5. Micro usb
Product Description
Dimension
187*111*50mm(L*H*W)
Power Consumption
TDP 15W
Available CPU
Q355P: Intel Core i5-5200U(3M Cache, dual core 2.2GHz,to 2.7GHz),support AES-NI
Q350P: Intel Core  i5-4200U(3M Cache,  dual core 1.60GHz,to 2.6GHz),support AES-NI
Q330P: Intel Core  i3-4005U(3M Cache, dual core, 1.70GHz),support AES-NI
Q305P: Intel Celeron 3205U(2M Cache, dual core 1.50GHz)
Q310P: Intel Celeron 3215 U(2M Cache, dual core 1.70GHz)

Memory
Support DDR3 RAM SO-DIMM
Hard Disk
 Support MSATA SSD and 2.5 inch HDD
Onboard VGA
Q355P: Intel HD Graphic 5500
Q350P: Intel HD Graphic 4400
Q330P: Intel HD Graphic 4400
Q305P:  Intel® HD Graphics for 5th Generation Intel® Processors
Q310P:  Intel® HD Graphics for 5th Generation Intel® Processors
Onboard LAN
2 x Intel I211-AT- 10/100/1000 Controller
Audio Solution
Realtek ALC662 6-Channel HD Audio

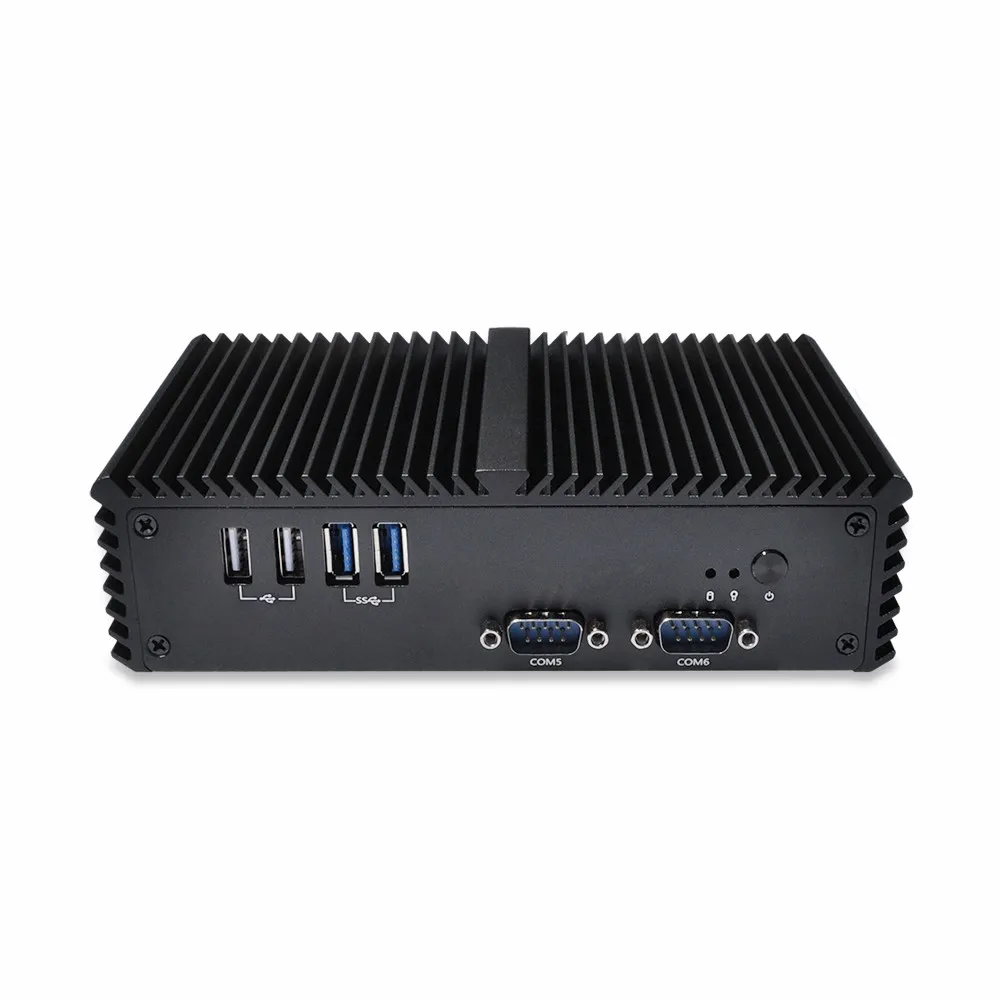

Front-Panel Connectors
• power on/off button
• HDD LED, Power LEDs
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 2 × COM ports
Internal Connectors
• 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/BLUETOOT Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x SATA Port
• 1 x SATA power connector
• 1 x Automatically boot jumper
• 1 x VGA header
• 1 x GPIO header (optional)
• 1 x SIM Card slot (optional)
Back-Panel Connectors
• 1 ×12V DC input
• 2 x HD Video ports
• 2 x Intel RJ-45 Ports
• 2 x USB 3.0 Ports
• 1 x Speak Out Connector
• 1 x Mic In Connector
• 4 × COM ports ( COM 2 can be changed to RS485)
• 1 × VGA port(can be changed by one of the RS232 COM ports)
Support OS
Windows 7 / Windows 8 / Windows 10 / Linux .etc
                                                                    Available   Configuration for your choice
Memory
2GB / 4GB / 8GB DDR3L SO-DIMM
Storage
mSATA SSD : 8G/16G/24G/30G/32G/60G/64G/120G/128G/240G/256G/512G
2.5" HDD:  500G / 1TB
WiFi /bluetooth
optional
1. Our available CPU for this case:
Celeron 3215U,3205U, Pentium 3805U, Core i3-4005U, Core i5-4200U, Core i7-4500U

2. You can choose the configurations as you like,then we will quote for your  match.

3. We provide unactivated Windows system.windows 7 by default.

4.
Generally, We quote retail price.But We provide better price for bulk order!
